Relief engraving mac
SW1325 independent three head carving machine
  • SW1325 independent three head carving machine

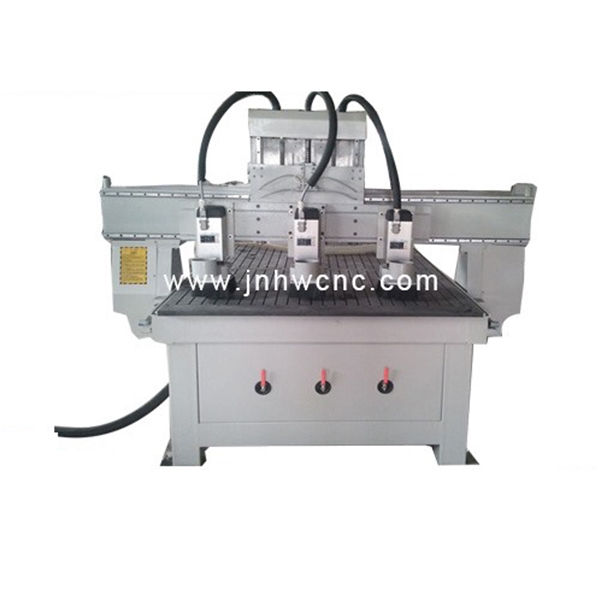

SW1325 independent three head carving machine

Category:Relief engraving machine

Product specifications:

Details







Serial number describe parameter
one X. Y-axis and Z-axis travel 1300*2500*190mm
two Platform size 1300*2500mm
three Maximum operating speed 25m/min
four Maximum carving speed 15m/min
five resolving power 0.01mm
six heavyRepositioningaccuracy < 0.05mm
seven processor Weihong
eight Carving instructions G code *. u00 *. mmg *. plt
nine Software operating environment win98/2000/xp
ten working voltage AC380V/50Hz
eleven Spindle power 2.2KW
twelve Spindle speed 0--24000r/min
thirteen operation mode Step by Step

1. Three head carving: Three heads can work simultaneously on the same pattern, greatly improving the processing speed of the board and completing the work efficiency of three devices in the same time. In some cases where the processing volume is not large, single spindle independent work can also be achieved, effectively and reasonably controlling production costs.
2. During batch processing, the product has good consistency and high quality.
3. The overall steel structure is welded and tempered with aging treatment, which is sturdy and does not deform. Longmen style mobile, fixed workbench, can process materials on the workbench freely.
4. The Y-axis of the machine tool adopts rack and pinion dual drive, which can perform heavy cutting. It has three independent heads, and each head can be controlled and operated separately.
5. Adopting the Weihong CNC system, it can achieve breakpoint continuation carving and power-off memory function, with convenient and intuitive operation, suitable for relief carving.
6. Compatible with G machining codes generated by various CAD/CAM design software such as Type3/Artcam/Jingdiao/Wentai.

Specially designed for customers who require large-scale and small workpiece processing, suitable for processing cabinet doors, craft gifts, relief crafts, non-ferrous metal carving and cutting, and many other industry products.

Monthly production of over 1000 units.

Our professional sales and after-sales service team will promptly and efficiently solve your problems.
