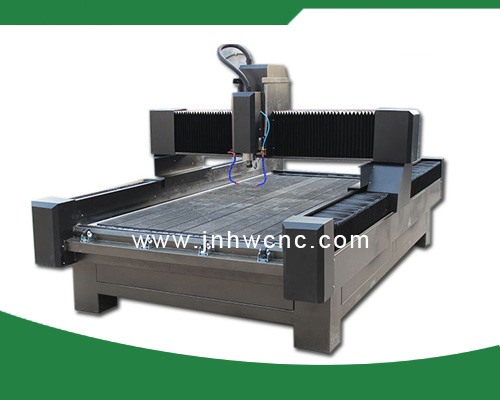

1325 Stone Carving Machine















 Machine model  ps-1224
 Stone carving machine platform size    1440*2600mm
 x. Y-axis travel  900*1500mm
 Maximum operating speed    6m/min
Z-axis travel  120mm
 Maximum carving speed  4m/min
 resolving power  0.005mm
 Software operating environment  windows98/2000/xp
 Repetitive positioning accuracy  0.05mm
  Spindle power  1.5kw water cooling
Spindle speed  24000r/min
 operation mode  Stepping

1. The three-axis adopts linear guide rail, which runs smoothly and has high precision.

2. The whole machine adopts seamless welding of steel structure, with good rigidity and no deformation. The workbench is backed with steel plate, which has high strength and good rigidity.

3. Constant power spindle motor with high cutting force and efficiency.

4. Adopting a fully offline control system embedded in a USB drive makes its operation more convenient and flexible.

5. The machine tool is equipped with a water tank and an automatic water supply cooling system.

6. All dust-proof and waterproof designs provide comprehensive protection for machine transmission components.



Scope of application: Natural marble, granite, bluestone, sandstone, artificial stone, tombstone, milestone, ceramic tile, glass and other three-dimensional reliefs, as well as line carving, cutting, chamfering, drilling and two-dimensional carving. Hard stone such as granite can be carved in layers up to 3mm, while marble, bluestone and other hard stones can be carved up to 3mm at once, such as marble, granite, bluestone, jade, crystal, tombstone, agate, ceramics, glass, plastic, chemical composite board, bamboo, wood, curved surface, spherical surface, stainless steel, iron, copper, aluminum, titanium alloy, etc. Carving fonts and patterns on stone and glass, including Yin carving, Yang carving, handwritten characters, celebrity calligraphy and painting, frosted painting, flat carving painting, shadow carving portrait, etc., with adjustable depth to achieve unique artistic effects
